Grouped list

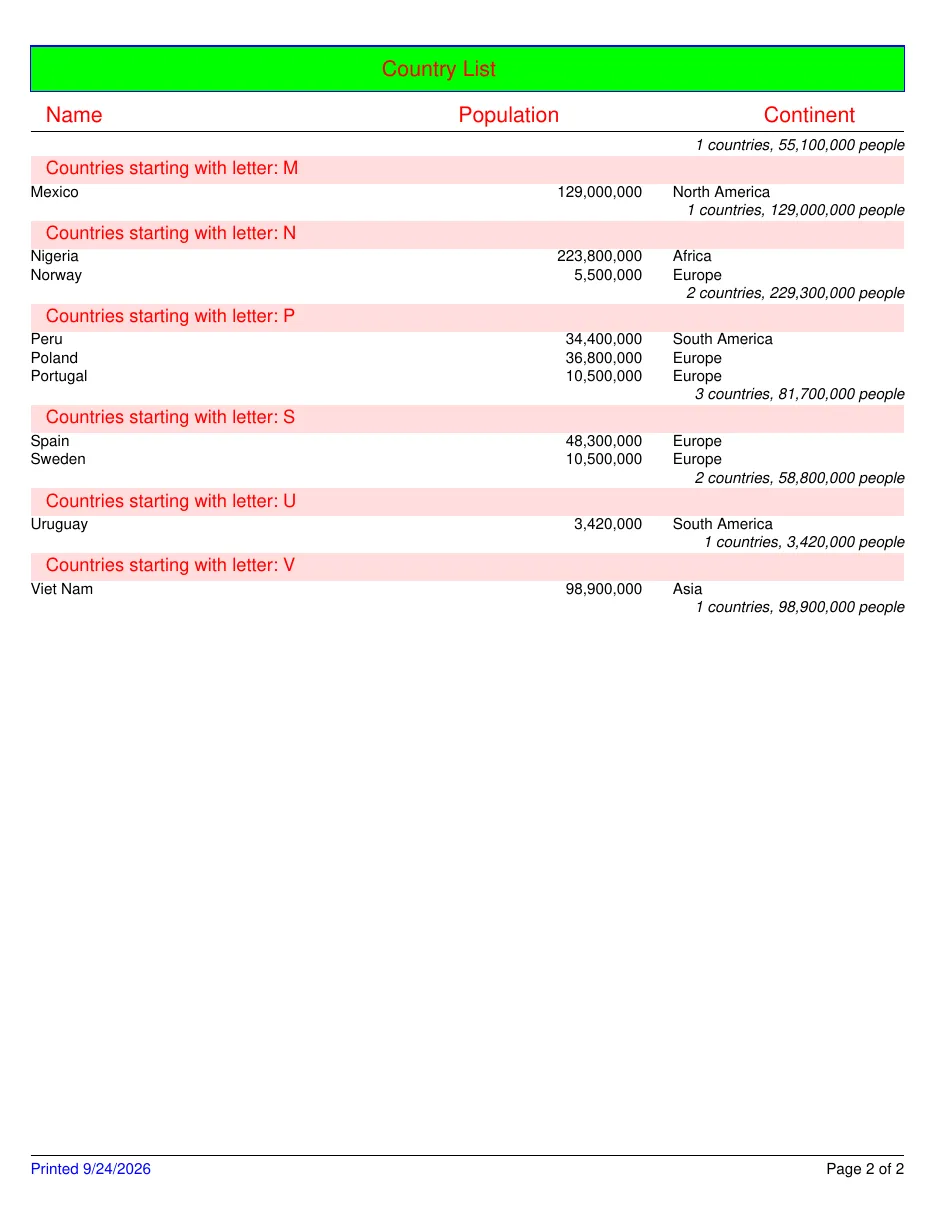

Countries grouped by their first letter, each group with a header and a footer that counts its countries and adds up their population. A parameter filters out the smallest countries; page headers repeat the column titles, and the footer says “page n of m”. When nothing is left after filtering, a “no data” band says so.

Download the PDF.

What it shows

• Groups with headers and footers
• Totals per group (Count, Sum)
• A filter from a parameter
• Page headers and footers with “page n of m”
• A “no data” band

The template

world-population.report.yaml

# yaml-language-server: $schema=../schema/template.schema.json
# The 2008 melon-reports WorldPopulation.xml, ported to the v1 format.
# Differences from the original: no connection string or SQL (the host supplies rows),
# a working group footer with aggregates, and "Page n of m" in the footer.
version: 1
title: Countries of the World
culture: en-US

page:
  size: Letter
  margins: 20pt

parameters:
  minPopulation: { type: int64, default: 0 }

data:
  countries:
    fields:
      Name: string
      Continent: string
      Region: string
      Population: int64

styles:
  base:    { font: Helvetica, fontSize: 10pt }
  heading: { extends: base, fontSize: 14pt, color: "#FF0000" }
  group:   { extends: base, fontSize: 12pt, color: "#FF0000", background: "#FFDDDD", padding: 2pt 10pt }

body:
  dataset: countries
  filter: =Population >= minPopulation
  sort: [Name, Continent]

  groups:
    - name: FirstLetter
      by: =Upper(Left(Name, 1))
      header:
        - style: group
          keepWithNext: true
          bookmark: "{FirstLetter}"
          content:
            - { type: text, value: "Countries starting with letter: {FirstLetter}", tag: h1 }
      footer:
        - content:
            - type: text
              value: "{Count()} countries, {Sum(Population):N0} people"
              align: right
              italic: true

  pageHeader:
    # Absolute layout, as in the original, to show what importers of banded formats emit.
    - layout: absolute
      height: 70pt
      content:
        - { type: rect, x: 0, y: 10pt, width: 100%, height: 30pt, background: "#00FF00", border: "1pt solid #0000FF", tag: artifact }
        - { type: text, x: 230pt, y: 18pt, value: Country List, style: heading }
        - { type: text, x: 10pt, y: 48pt, value: Name, style: heading }
        - { type: text, x: 280pt, y: 48pt, value: Population, style: heading }
        - { type: text, x: 480pt, y: 48pt, value: Continent, style: heading }
        - { type: line, x: 0, y: 66pt, width: 100% }

  detail:
    # Flow layout: widths are fractions of the band, text grows instead of overlapping.
    - layout: row
      style: base
      content:
        - { type: text, value: "{Name}", width: 45% }
        - { type: text, value: "{Population:N0}", width: 25%, align: right }
        - { type: text, value: "{Continent}", width: 30%, padding: 0 0 0 20pt }

  pageFooter:
    - layout: row
      style: base
      borderTop: "0.5pt solid #000000"
      padding: 4pt 0 0 0
      content:
        - { type: text, value: "Printed {Today():d}", width: 1fr, color: "#0000FF" }
        - { type: text, value: "Page {PageNumber} of {TotalPages}", width: 1fr, align: right }

  noData:
    - content:
        - { type: text, value: "No countries with at least {minPopulation:N0} people." }

Render it yourself

Save the template, put the fonts it names next to it (Inter and the Noto fonts are free, under the SIL Open Font License), and run:

tagua render world-population.report.yaml --open

Without a data file, tagua render makes up sample rows from the field types; see Preview as you edit.
