Text element
Text, with {expressions} interpolated.

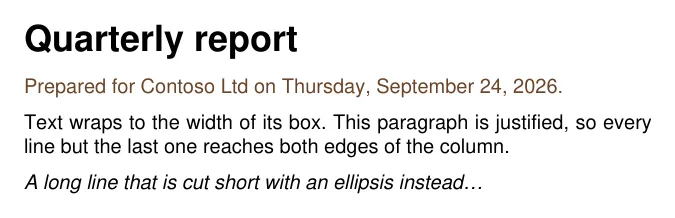

- { type: text, value: ... }Example
Section titled “Example”title: Textculture: en-USparameters: Customer: { type: string, default: "='Contoso Ltd'" }body: reportHeader: - gap: 6pt content: - { type: text, value: Quarterly report, fontSize: 18pt, fontWeight: bold, tag: h1 } - { type: text, value: "Prepared for {Customer} on {Date(2026, 9, 24):D}.", color: "#6B4428" } - type: text width: 60% align: justify value: >- Text wraps to the width of its box. This paragraph is justified, so every line but the last one reaches both edges of the column. - type: text width: 45% italic: true overflow: ellipsis maxLines: 1 value: A long line that is cut short with an ellipsis instead of wrapping
Properties
Section titled “Properties”Type: text · Required
Text template, e.g. "{Sum(Population):N0} people". Grows to fit unless height is fixed.
overflow
Section titled “overflow”Type: keyword · Default: wrap
What happens to text that does not fit its width (or its height, when fixed).
One of:
wrap: Wraps onto as many lines as the text needs.clip: Cuts off what does not fit.ellipsis: Ends the last line that fits with an ellipsis.shrink: Reduces the font size until the text fits.
maxLines
Section titled “maxLines”Type: whole number
The most lines to show; the rest overflows.
Type: list of object
Styles that apply where their condition holds, e.g. a negative amount in red.
styleFrom
Section titled “styleFrom”Type: object
Style properties taken from the data, e.g. color: =StatusColor.
markup
Section titled “markup”Type: keyword · Default: none
Reads the text as HTML, with its bold, italic and coloured parts, and its line breaks.
One of:
none: As it is: every character is shown.html: As a small subset of HTML, once its expressions are filled in:b,strong,i,em,u,s,br, paragraphs anddivs, lists, headings (in bold),font color, and thecolor,font-weight,font-styleandtext-decorationof astyleattribute. Spaces collapse, and entities such as&are read. Other tags are left out, with their text kept; font sizes and faces are not used.
It also has the properties of every element and the style properties.
